Engine, Securing On Engine And Transmission Holder

WARNING: This page is about a different car, the 2014 Volkswagen Touareg and 2013 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

Special tools and workshop equipment required

Lifting Tackle: 3033
Engine And Transmission Holder: VAS6095 with Engine/Transmission Holder - V6 TDI Bracket : VAS6095/1-11
Shop Crane: VAS6100
Lift Arm Extension: VAS6101

Procedure

Engine/transmission assembly removed and separated on Scissor Lift Table: VAS6131B . Refer to ENGINE AND TRANSMISSION, SEPARATING .
Engine secured with Scissor Lift Table - Q7 Set - Articulated Joint Support: VAS6131/13-7 .

NOTE:

Place a cloth underneath to soak up any escaping hydraulic oil.

-- Remove the bolts -2- and the hydraulic pipe.

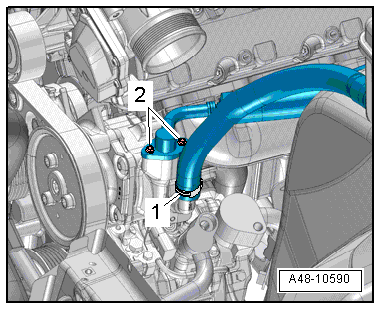

Fig 1: Identifying Power Steering Pump Hydraulic Hose -1- And Bolts -2-

GWWA48-10590

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Close open lines and connections with clean plugs from the Engine Bung Set: VAS6122 .

-- Remove the bolt on the -arrow- on the Air Conditioning (A/C) compressor wire bracket.

Fig 2: Identifying Electric Wire Bracket Bolt -Arrow- From Air Conditioning (A/C) Compressor

GWWA10-10494

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the left and right engine mount nuts -arrow-.

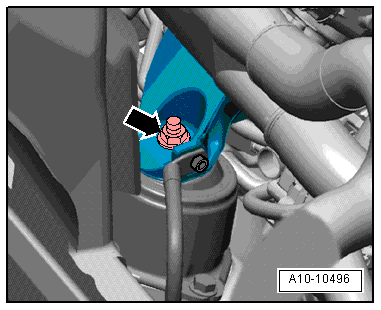

Fig 3: Identifying Engine Mount Bracket To Engine Mount Nut -Arrow-

GWWA10-10496

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

NOTE:

Engine carrier remains in installation location.

-- Disconnect the connector -3-.

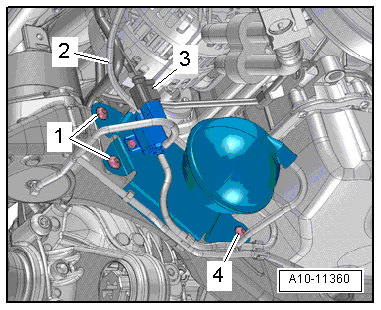

Fig 4: Identifying Bolts -1 & 4- And Electrical Connector -3-

GWWA10-11360

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Disconnect the vacuum hose -2- and free it up from the engine support.

-- Attach the : VAS6101 to the : VAS6100 .

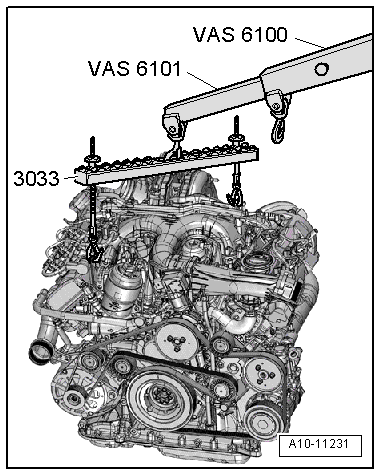

Fig 5: Identifying Engine Assembly Lift Tools

GWWA10-11231

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Engage the Lifting Tackle: 3033 on the engine lifting eyes and on the shop crane as shown in the illustration.

-- Raise engine from engine carrier.

-- If equipped, remove the nuts -arrows- and the connector bracket from the left engine support.

Fig 6: Identifying Bolts -Arrows- And Connector Bracket From Left Engine Mount Bracket

GWWA10-10492

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the right and left bolts -arrows- and then remove the engine support.

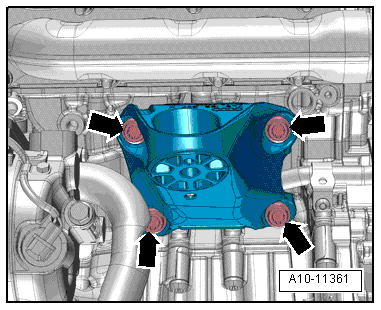

Fig 7: Engine Support, Removing/Installing

GWWA10-11361

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

NOTE:

The engine support on the left side can be seen in the illustration.

-- Secure the engine to the Engine/Transmission Holder - V6 TDI Bracket: VAS6095/1-11 using the bracket for the generation 2 V6 TDI engine Engine And Transmission Holder: VAS6095 and tighten to 40 Nm, as illustrated.

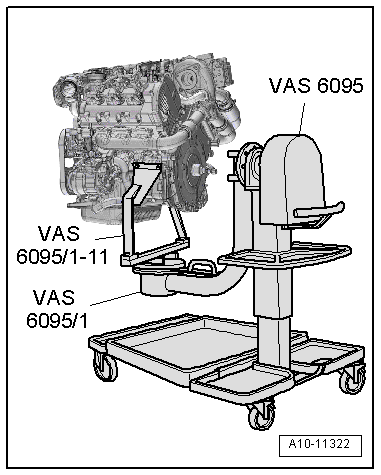

Fig 8: Identifying Engine Stand Assembly

GWWA10-11322

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
