Ventilation Slots In Luggage Compartment, Checking

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2018 Audi S7, 2018 Audi RS 7, 2018 Audi A7 Quattro, 2017 Audi S7, and 2017 Audi RS 7. However, it is still accessible from the selected car via links, so may be relevant.

Test Sequence

GWWA87-10909Courtesy of AUDI OF AMERICA, LLC

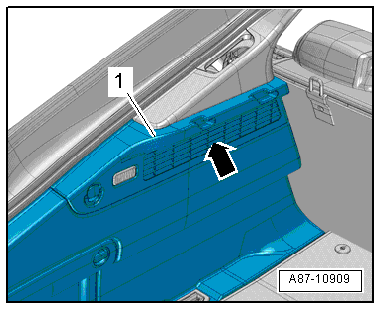

-- Check the left and right air guides through the vent openings -arrow- built into the luggage compartment side trim panel -1-.

NOTE:

Closed or blocked air ducts to the forced air extraction vent frames can cause the windows to fog up.

Various versions and locations. Shown in the illustration on the Audi A7.

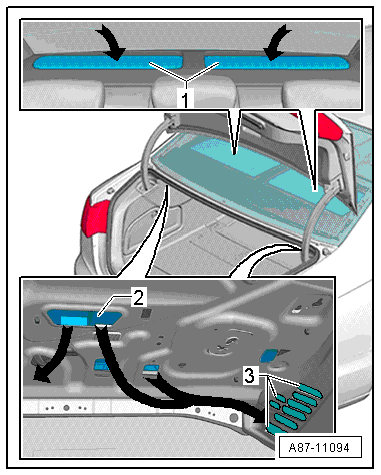

For the Audi A6 Sedan the forced air extraction takes place using two vents -1- in the rear shelf, openings in the luggage compartment liner -2- and the right and left luggage compartment side trim panel -3- for the forced air extraction vent frames.

GWWA87-11094Courtesy of AUDI OF AMERICA, LLC

For the Audi A6 Avant, the forced air extraction takes place in the same way using the luggage compartment side trim panel near the rear side window integrated vent openings.
