Electrical Components Locations & Connector End Views -- Q3
>>
Comp. LOC. Vehicle Cabin Modules
>>
Automatic High Beam Assist Control Module J844
>>

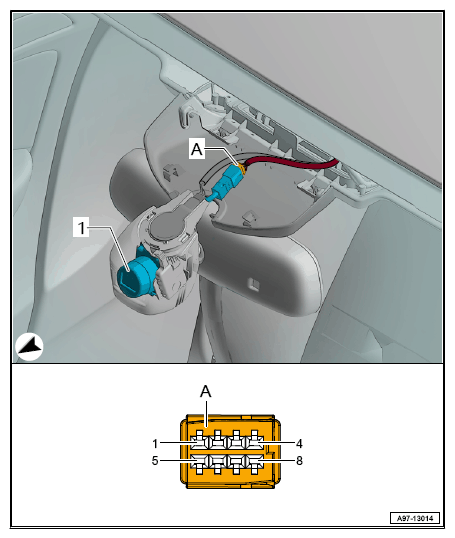

Automatic High Beam Assist Control Module -J844- Connector View
Automatic High Beam Assist Control Module -J844- Connector View
8-PIN CONNECTOR -T8AD-
A
- 8-Pin Connector -T8Ad-, Black
Courtesy of AUDI OF AMERICA, LLC
Courtesy of AUDI OF AMERICA, LLC
