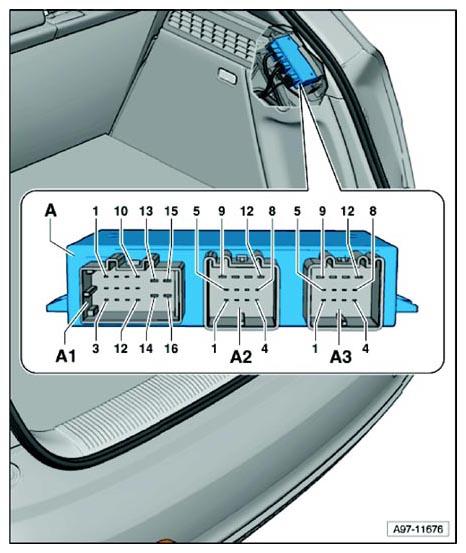

Towing Recognition Control Module Connector End View (J345, T16l, T12b, T12c)
Behind side trim, in right luggage compartment.
Courtesy of AUDI OF AMERICA, LLC
| A |
Towing Recognition Control Module -J345- |
| A1 |
16-Pin Connector -T16l-, black |
| A2 |
12-Pin Connector -T12b-, red |
| A3 |
12-Pin Connector -T12c-, blue |
