Fresh Air Blower Control Module Connector End View (J126, T6u)
Fresh Air Blower Control Module Connector End View (J126, T6u)
Behind glove compartment.

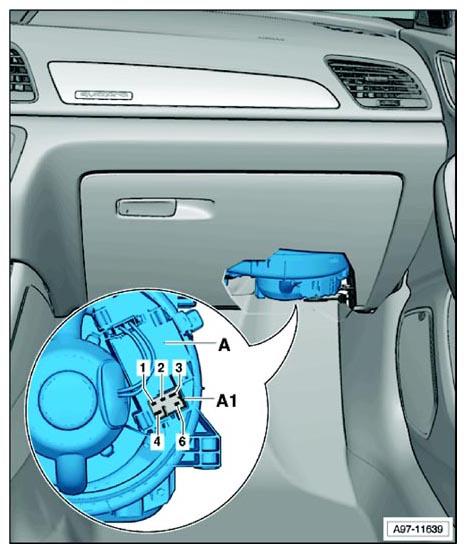

Fig 1: Fresh Air Blower Control Module Connector End View (J126, T6u)
Courtesy of AUDI OF AMERICA, LLC
A
Fresh Air Blower Control Module -J126-
A1
6-Pin Connector -T6u-, brown
Courtesy of AUDI OF AMERICA, LLC
