Electrical Components Locations & Connector End Views -- Q3
>>
Comp. LOC. Vehicle Rear Modules
>>
Towing Recognition Control Module J345
>>

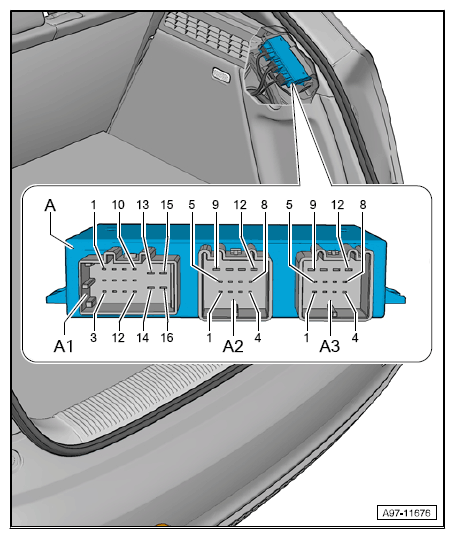

Towing Recognition Control Module -J345-, Location
Towing Recognition Control Module -J345-, Location
A
- Towing Recognition Control Module -J345-
A1
- 16-Pin Connector -T16L-, Black
A2
- 12-Pin Connector -T12B-, Red
A3
- 12-Pin Connector -T12C-, Blue
Courtesy of AUDI OF AMERICA, LLC
