Special Purpose Vehicle Control Module -J608-, Connector View

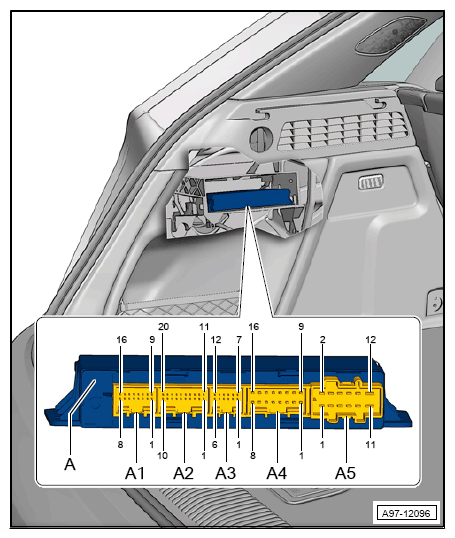

16-PIN CONNECTOR -T16T-/20-PIN CONNECTOR -T20M-/12-PIN CONNECTOR -T12AI-

  1. A1  - 16-Pin Connector -T16t-, brown
  2. A2  - 20-Pin Connector -T20m-, black
  3. A3  - Not Used
  4. A4  - Not Used
  5. A5  - 12-Pin Connector -T12ai-, black
G12775421Courtesy of AUDI OF AMERICA, LLC
