Rear Lid Control Module -J605-, Connector View

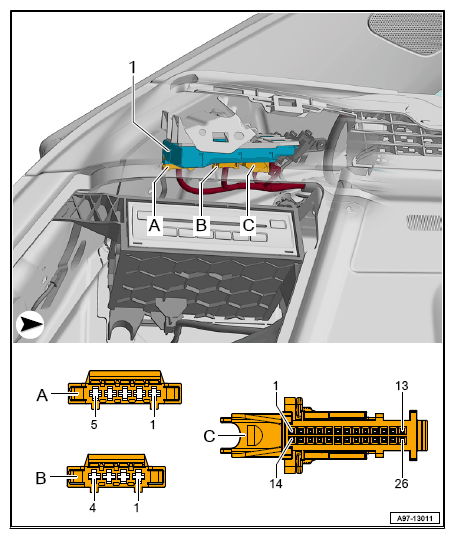

4-PIN CONNECTOR -T4AR-/5-PIN CONNECTOR -T5G-/26-PIN CONNECTOR -T26C-

  1. 4-Pin Connector -T4Ar-, Black
  2. 5-Pin Connector -T5G-, Black
  3. 26-Pin Connector -T26C-, Black
G12775427Courtesy of AUDI OF AMERICA, LLC
