Electrical Components Locations & Connector End Views -- Q3
>>
Comp. LOC. Vehicle Rear Modules
>>
Lane Change Assistance Control Module J769
>>

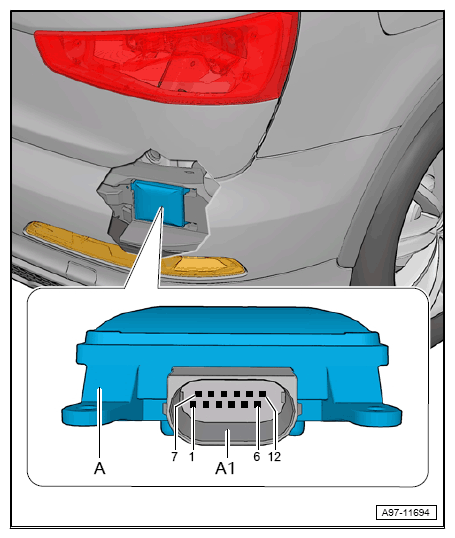

Lane Change Assistance Control Module -J769-, Connector View
Lane Change Assistance Control Module -J769-, Connector View
12-PIN CONNECTOR -T12G-
A1
- 12-Pin Connector -T12G-, Black
Courtesy of AUDI OF AMERICA, LLC
Courtesy of AUDI OF AMERICA, LLC
