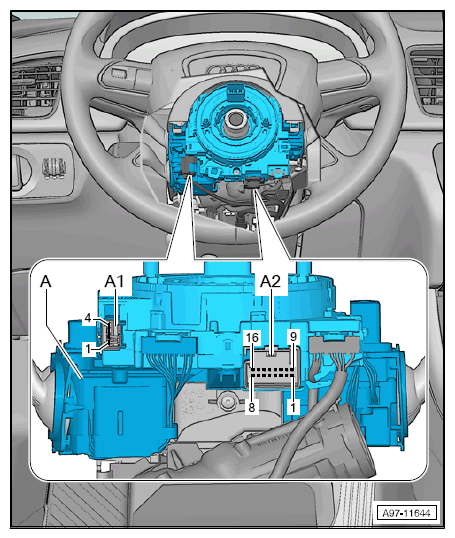

Steering Column Electronic Systems Control Module -J527- Location

  1. A  - Steering Column Electronic Systems Control Module -J527-
  2. A1  - 4-Pin Connector -T4-, Yellow
  3. A2  - 16-Pin Connector -T16C-, Black
G12775349Courtesy of AUDI OF AMERICA, LLC
