Electrical Components Locations & Connector End Views -- Q3
>>
Comp. LOC. Vehicle Cabin Modules
>>
Roof Shade Control Module J394
>>

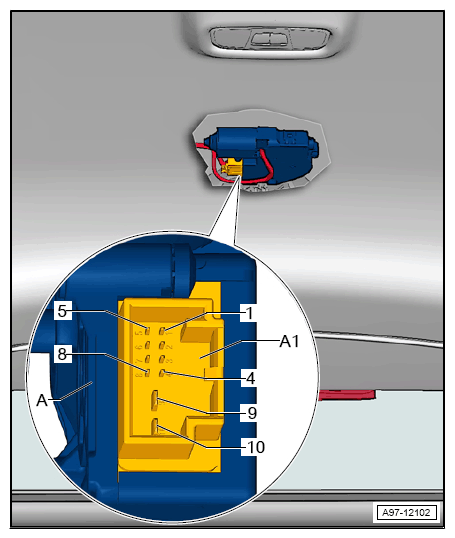

Roof Shade Control Module -J394- Connector View
Roof Shade Control Module -J394- Connector View
10-PIN CONNECTOR -T10N-
A1
- 10-Pin Connector -T10N-, Black
Courtesy of AUDI OF AMERICA, LLC
