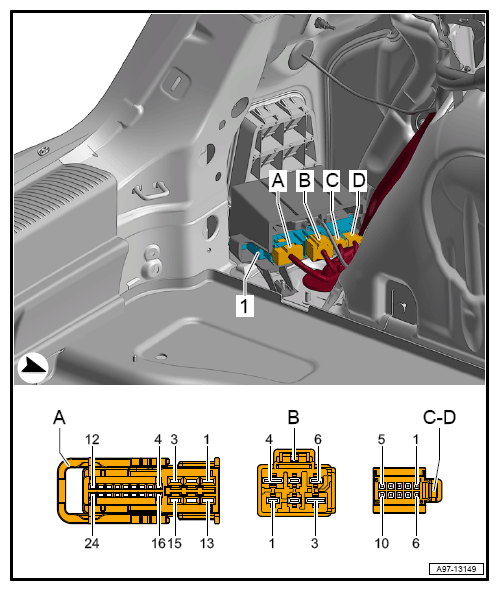

Towing Recognition Control Module -J345-, Location, From 5/2014

  1. Behind Side Trim, In Left Luggage Compartment.
  2. 1  - Towing Recognition Control Module -J345-
  3. A  - 24-Pin Connector -T24A-, Black
  4. B  - 6-Pin Connector -T6AW-, Black
  5. C  - 10-Pin Connector -T10AD-, Black
  6. D  - 10-Pin Connector -T10AQ-, Red
    • From May 2016
G12759754Courtesy of AUDI OF AMERICA, LLC
