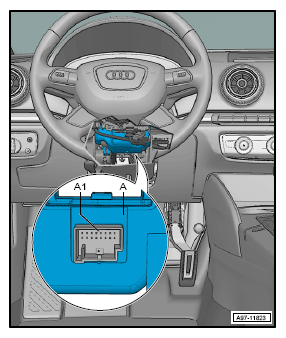

Electronic Steering Column Lock Control Module -J764- Connector Views, Through June 2018

  1. 16-Pin Connector -T16G-
  2. A1  - 16-Pin Connector -T16G-, Black
G12759758Courtesy of AUDI OF AMERICA, LLC
