Electrical Components Locations & Connector End Views -- (A3)
>>
Comp. LOC. Vehicle Front Modules
>>
Transmission Control Module (TCM) J217
>>

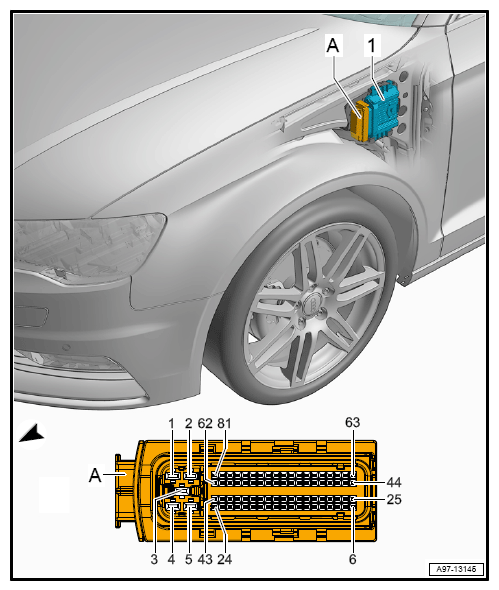

Transmission Control Module (TCM) -J217-, Connector Views, From 5/2016
Transmission Control Module (TCM) -J217-, Connector Views, From 5/2016
81-Pin Connector -T81-
A
- 81-Pin Connector -T81-, Black
Courtesy of AUDI OF AMERICA, LLC
Courtesy of AUDI OF AMERICA, LLC
