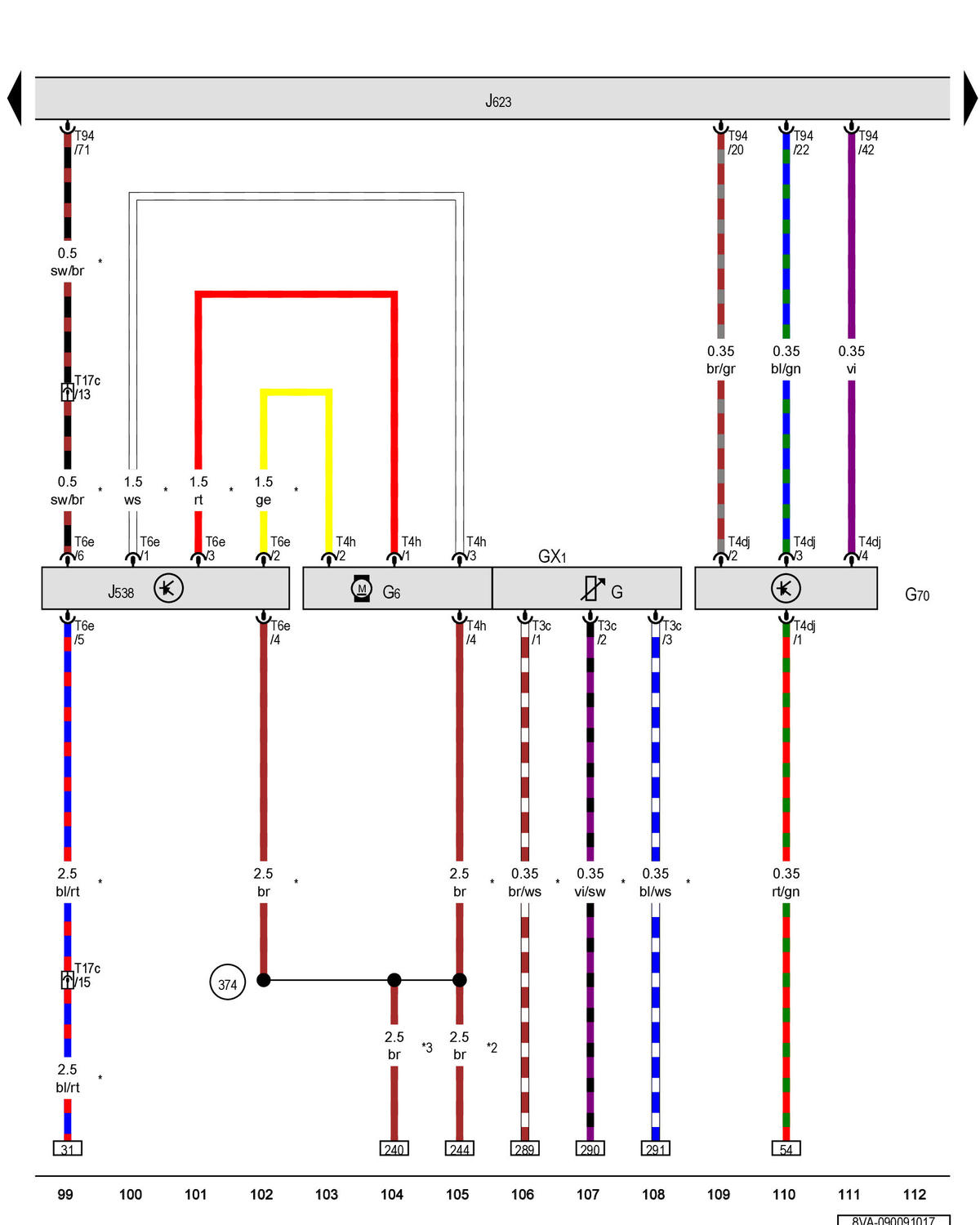

Fuel Level Sensor, Fuel Delivery Unit, Transfer Fuel Pump, Mass Airflow Sensor, Fuel Pump Control Module, Engine/Motor Control Module: Notes

GWW8VA-090091017Courtesy of AUDI OF AMERICA, LLC
