Engine Control Module (ECM) -J623- Connector View (196-Pin)

  1. 91-Pin Connector -T91-/105-Pin Connector -T105-
  2. A1  - 91-Pin Connector -T91-, Black
  3. A2  - 105-Pin Connector -T105-, Black

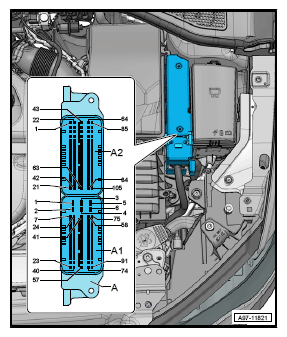

G12759698Courtesy of AUDI OF AMERICA, LLC
