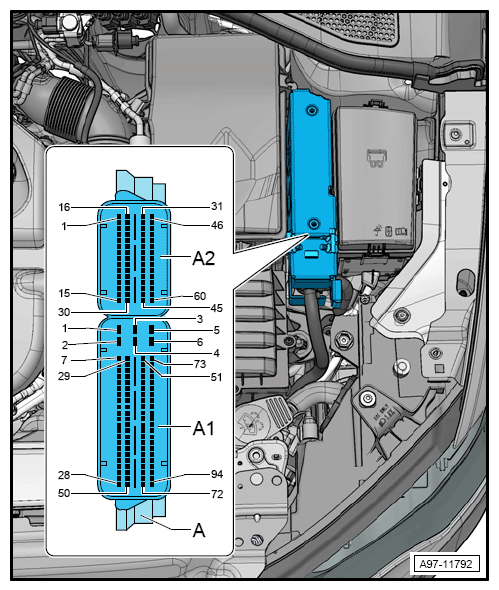

Engine Control Module (ECM) -J623- Connector View (154-Pin)

  1. 94-Pin Connector -T94-/60-Pin Connector -T60-
  2. A1  - 94-Pin Connector -T94-, Black
  3. A2  - 60-Pin Connector -T60-, Black
G12759696Courtesy of AUDI OF AMERICA, LLC
