Wiring Diagrams
>>
Electrical Components Locations & Connector End Views -- (A3)
>>
Comp. LOC. Vehicle Cabin Modules
>>
Can-Bus Control Module -J916-
>>

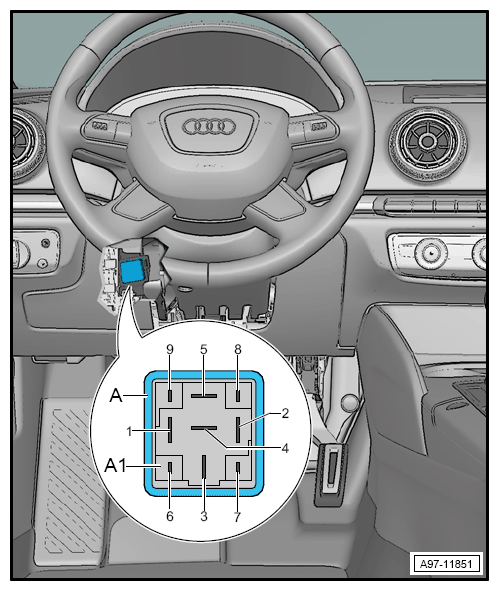

Can-Bus Control Module -J916- Connector Views
Can-Bus Control Module -J916- Connector Views
9-Pin Connector -T9-
A1
- 9-Pin Connector -T9-
Courtesy of AUDI OF AMERICA, LLC
Courtesy of AUDI OF AMERICA, LLC
