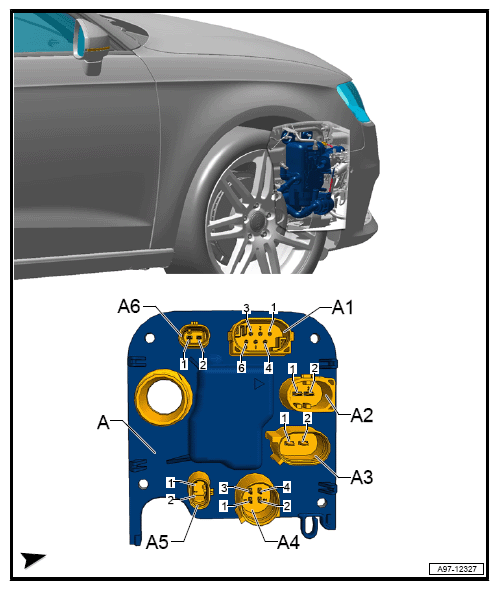

Auxiliary Heater Control Module -J364- Connector View

  1. 6-Pin Connector -T6T-/Double Connector -T2V-/Double Connector -T2X-/4-Pin Connector -T4R-/Double Connector -T2Y-
  2. A1  - 6-Pin Connector -T6T-, Black
  3. A2  - Double Connector -T2V-, Black
  4. A3  - Double Connector -T2X-
  5. A4  - 4-Pin Connector -T4R-
  6. A5  - Not Used
  7. A6  - Double Connector -T2Y-
G12759684Courtesy of AUDI OF AMERICA, LLC
