Vehicle Electrical System Control Module -J519- Connector Views

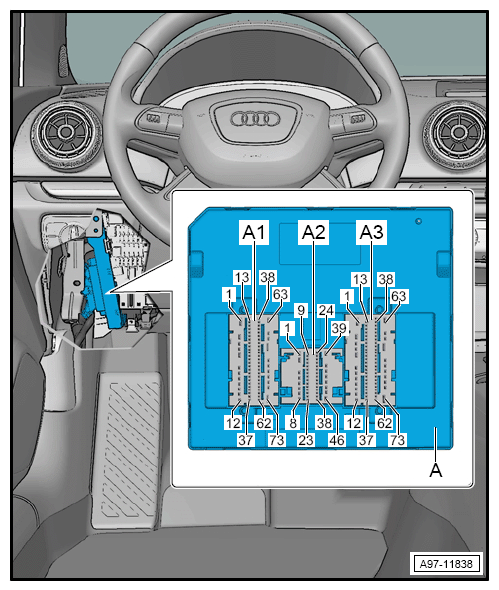

  1. 73-Pin Connector -T73A-/46-Pin Connector -T46B-/73-Pin Connector -T73C-
  2. A1  - 73-Pin Connector -T73A-, Black
  3. A2  - 46-Pin Connector -T46B-, Black
  4. A3  - 73-Pin Connector -T73C-, Black
G12759776Courtesy of AUDI OF AMERICA, LLC
