Towing Recognition Control Module -J345- Connector Views, Through 4/2014

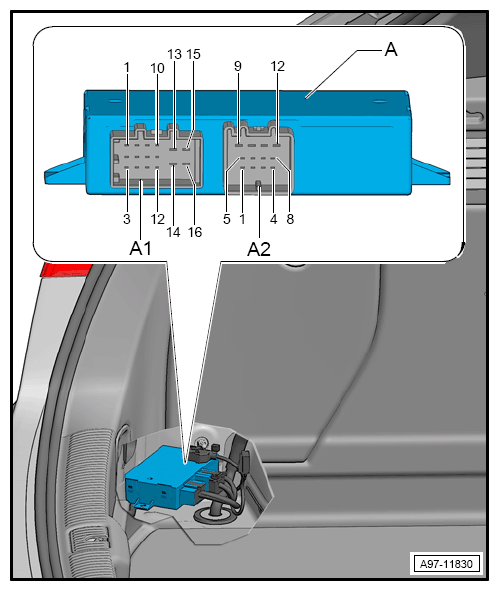

  1. 16-Pin Connector -T16L-/12-Pin Connector -T12B-
  2. A1  - 16-Pin Connector -T16L-, Black
  3. A2  - 12-Pin Connector -T12B-, Red
G12759753Courtesy of AUDI OF AMERICA, LLC
