Rear Window Control Module, Driver's Side -J1016-/Front Passenger Side Rear Window Control Module -J1017-, Connector Views, CABRIO

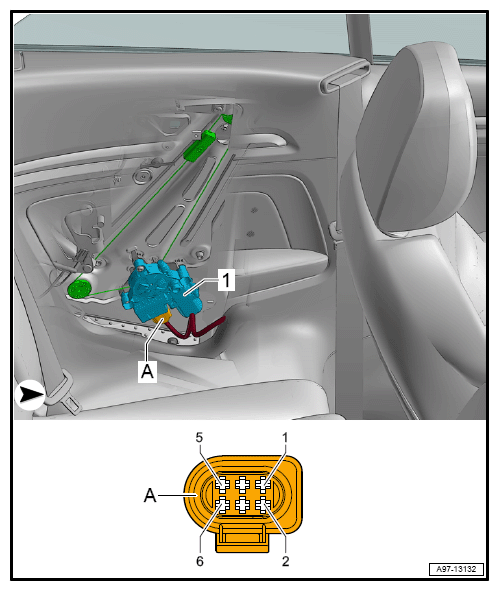

  1. 6-Pin Connector -T6AT-/6-Pin Connector -T6AU-
  2. A  - 6-Pin Connector -T6AT-, Black
  3. A  - 6-Pin Connector -T6AU-, Black
G12759875Courtesy of AUDI OF AMERICA, LLC
