Rear View Camera System Control Module -J772-, Connector Views, From 5/2016

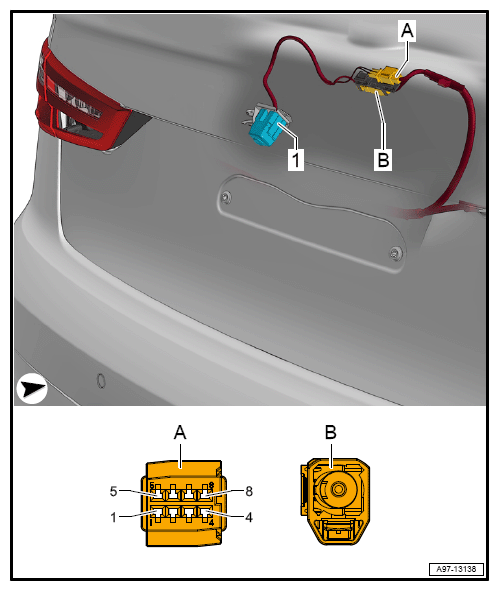

  1. 8-Pin Connector -T8AO-/Double Connector -T2PS-
  2. A  - 8-Pin Connector -T8AO-, Black
  3. B  - Double Connector -T2PS-, Grey
G12759871Courtesy of AUDI OF AMERICA, LLC
