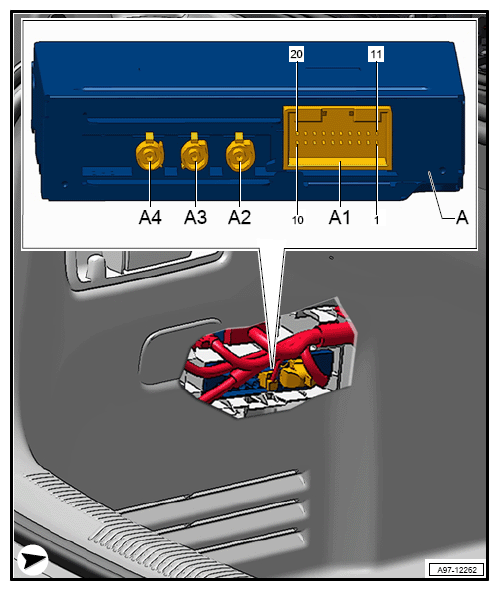

Rear View Camera System Control Module -J772- Location
Behind Side Trim, In Left Luggage Compartment.
- A
- Rear View Camera System Control Module -J772-
- A1
- 20-Pin Connector -T20I-, Black
- A2
- Double Connector -T2DF-, Green
- A3
- Double Connector -T2EP-
- A4
- Not Used
 Courtesy of AUDI OF AMERICA, LLC
|
