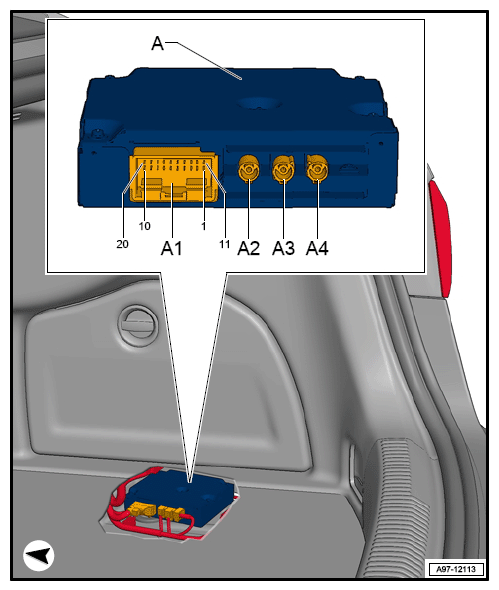

Rear View Camera System Control Module -J772- Connector Views

  1. 20-Pin Connector -T20I-/Double Connector -T2DF-/Double Connector -T2EP-
  1. A1  - 20-Pin Connector -T20I-, Black
  2. A2  - Double Connector -T2DF-, Green
  3. A3  - Double Connector -T2EP-, Grey
  4. A4  - Not Used
G12759811Courtesy of AUDI OF AMERICA, LLC
