Electrical Components Locations & Connector End Views -- (A3)
>>
Comp. LOC. Vehicle Cabin Modules
>>
Lane Change Assistance Control Module -J769-
>>

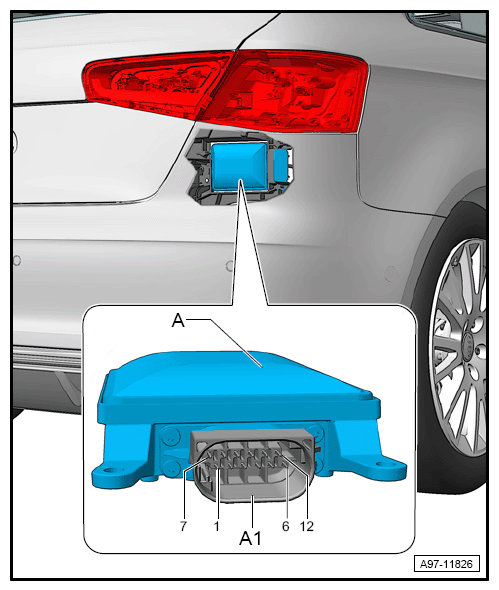

Lane Change Assistance Control Module-J769- Connector Views, Through 4/2016
Lane Change Assistance Control Module-J769- Connector Views, Through 4/2016
12-Pin Connector -T12G-
A1
- 12-Pin Connector -T12G-, Black
Courtesy of AUDI OF AMERICA, LLC
Courtesy of AUDI OF AMERICA, LLC
