Instrument Cluster Control Module -J285-
>>

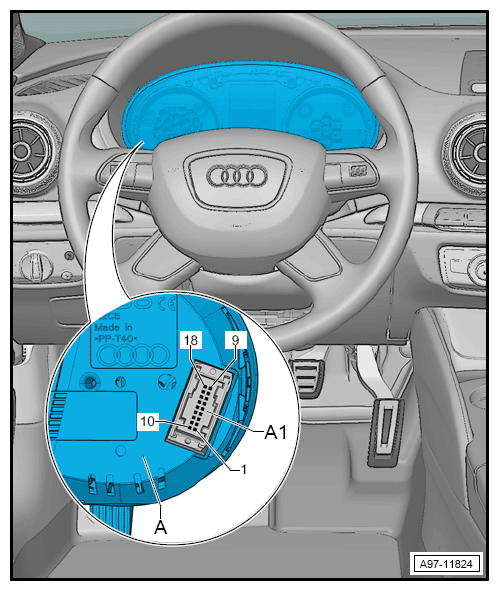

Instrument Cluster Control Module -J285-, Connector Views, T18
Instrument Cluster Control Module -J285-, Connector Views, T18
A1 - 18-Pin Connector -T18-, Black
Courtesy of AUDI OF AMERICA, LLC
