Convertible Top Control Module -J256- Connector Views

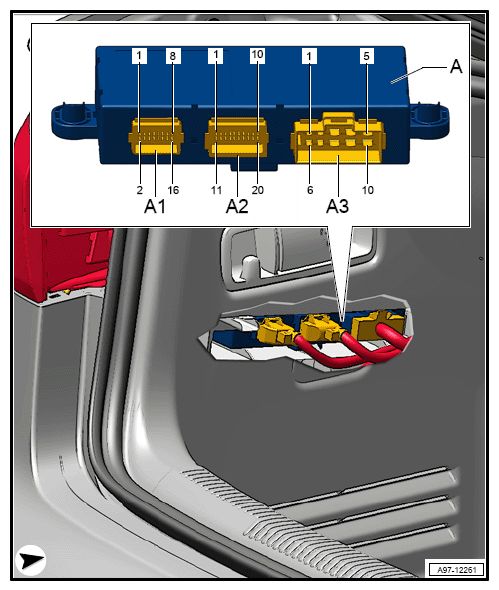

  1. 16-Pin Connector -T16Q-/20-Pin Connector -T20M-/10-Pin Connector -T10AA-
  2. A1  - 16-Pin Connector -T16Q-, Brown
  3. A2  - 20-Pin Connector -T20M-, Black
  4. A3  - 10-Pin Connector -T10AA-, Black
G12759829Courtesy of AUDI OF AMERICA, LLC
