Chip Card Reader Module -J676-, Connector Views

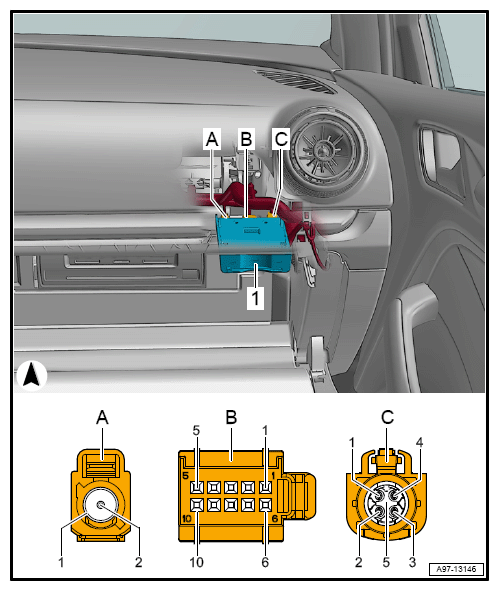

Double Connector -T2FA-/10-Pin Connector -T10Z-/4-Pin

Connector -T4AC-

  1. Double Connector -T2FA-, Yellow
  2. 10-Pin Connector -T10Z-, Black
  3. 4-Pin Connector -T4AC-, Brown
G12759883Courtesy of AUDI OF AMERICA, LLC
