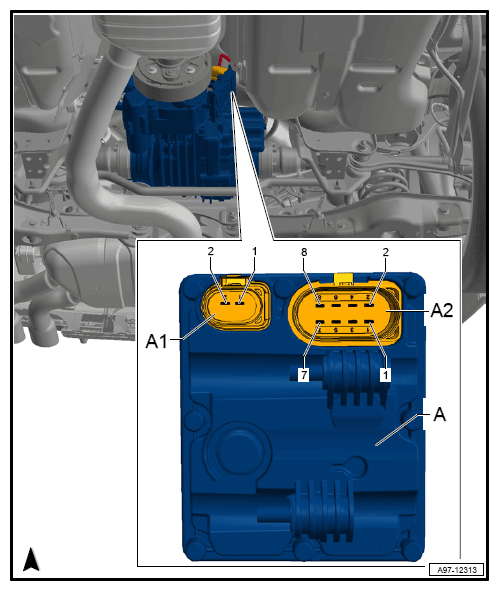

All-Wheel Drive Control Module -J492- Location

On Rear Axle Differential.

  1. A  - All-Wheel Drive Control Module -J492-
  2. A1  - Double Connector -T2AX-
  3. A2  - 8-Pin Connector -T8Y-, Black
G12759835Courtesy of AUDI OF AMERICA, LLC
