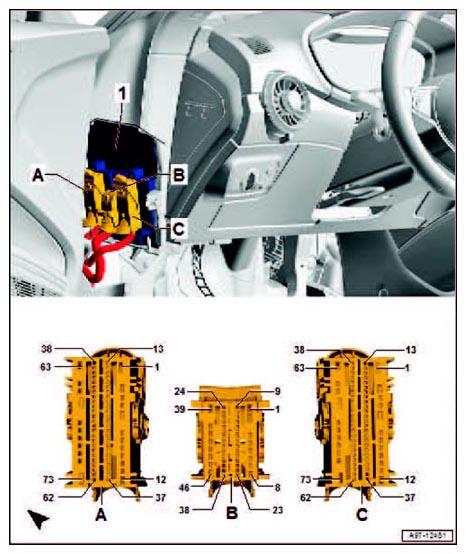

Vehicle Electrical System Control Module Connector End View (J519 T73a, T46a, T73c)
| 1 | Vehicle Electrical System Control Module -J519- |
| A | 73-Pin Connector -T73a-, black |
| B | 46-Pin Connector -T46a-, black |
| C | 73-Pin Connector -T73c-, black |
Pin Arrangements Vehicle Electrical System Control Module -J519-
| -T73a-(A) | Designation |
|---|---|
| 1 | |
| 2 | |
| 3 | Fuel Tank Lid Unlock Motor -V155- |
| 4 | Fuel Tank Lid Unlock Motor -V155- |
| 5 | |
| 6 | |
| 7 | |
| 8 | |
| 9 | Rear Lid Lock Unit -VX25- Rear Lid Central Locking System Motor -V53- |
| 10 | |
| 11 | Backup Lights, to B107 Connection (back-up lamp) inside main wiring harness |
| 12 | Terminal 31, to 366 Ground Connection 1 (in main wiring harness) 367 Ground Connection 2 (in main wiring harness) 639 Ground Connection (on left A-pillar) |
| 13 | Terminal 15, to Power Supply Relay (terminal 15) -J329- |
| 14 | Terminal 15, to B277 Positive connection 1 (15a) in main wiring-harness |
| 15 | LIN-Bus, to B528 LIN-Bus Connection 1 (in main wiring harness) |
| 16 | Comfort System CAN-Bus High, to B397 Comfort System CAN-Bus High Connection 1 (main wiring harness) B398 Comfort System CAN-Bus High Connection 2 (in main wiring harness) |
| 17 | Comfort System CAN-Bus Low, to B406 Comfort System CAN-Bus Low Connection 1 (in main-wiring harness) B407 Comfort System CAN-Bus Low Connection 2 (in main wiring harness) |
| 18 | |
| 19 | |
| 20 | CAN-Bus powertrain, Low to B390 Powertrain CAN-Bus Low Connection 1 (in main wiring harness) |
| 21 | CAN-Bus powertrain, High to B383 Powertrain CAN-Bus High Connection 1 (in main wiring harness) |
| 22 | |
| 23 | |
| 24 | |
| 25 | |
| 26 | |
| 27 | |
| 28 | LIN-Bus, to B698 LIN-Bus Connection 3 (in main wiring harness) Light Switch -El- Humidity Sensor -G355- Rain/Light Recognition Sensor -G397- |
| 29 | Light Switch -E1- |
| 30 | |
| 31 | |
| 32 | Rear Lid Lock Cylinder Unlock Button -F248- |
| 33 | |
| 34 | |
| 35 | |
| 36 | |
| 37 | |
| 38 | |
| 39 | |
| 40 | |
| 41 | |
| 42 | |
| 43 | |
| 44 | Access/start authorization control module -J518- |
| 45 | |
| 46 | |
| 47 | Access/start authorization control module -J518- |
| 48 | |
| 49 | Switch Module, instrument panel, center. -EX22- Rear Spoiler Switch -E127- |
| 50 | |
| 51 | |
| 52 | Rear Lid Lock Unit -VX25- Trunk Lid Alarm Switch -F123- |
| 53 | Rear Lid Lock Unit -VX25- Trunk Lock/Alarm/Central Locking Switch -F124- |
| 54 | Access/start authorization control module -J518- |
| 55 | |
| 56 | |
| 57 | B468 Connection 4 (in main wiring harness) Suppressor -C24- High-mount Brake Light -M25- |
| 58 | |
| 59 | B132 License plate lamp connection (in interior wiring harness) License Plate Light -X- |
| 60 | Left Brake Lamp -M9- |
| 61 | |
| 62 | |
| 63 | Terminal 31, to 366 Ground Connection 1 (in main wiring harness) 367 Ground Connection 2 (in main wiring harness) 639 Ground Connection (on left A-pillar) |
| 64 | Right Back-Up Lamp -M17- |
| 65 | Right tail lamp bulb -M2- |
| 66 | Terminal 30, from Fuse Panel C -SC- Safety fuse 2 -S132- |
| 67 | |
| 68 | |
| 69 | |
| 70 | |
| 71 | Left Rear Turn Signal Lamp -M6- |
| 72 | Left Rear Fog Lamp -L46- |
| 73 | Terminal 30, from Fuse Panel C -SC- Safety fuse 3 -S133- |
| -T46a-(B) | Designation |
|---|---|
| 1 | Right Low Beam Lamp |
| 2 | Right High Beam Lamp |
| 3 | |
| 4 | |
| 5 | Right Fog Lamp |
| 6 | Left Cornering Lamp |
| 7 | Windshield and Rear Window Washer Pump -V59- |
| 8 | |
| 9 | D101 Connection 1 (in engine compartment wiring harness) Left Washer Nozzle Heater -Z20- Right Washer Nozzle Heater -Z21- |
| 10 | |
| 11 | Back-Up Light Switch -F4- |
| 12 | D53 Right brake wear indicator connection (in engine compartment wiring harness) Right Front Brake Pad Wear Sensor -G35- |
| 13 | Brake Fluid Level Warning Switch -F34- |
| 14 | D103 Connection 3 (in engine compartment wiring harness) Engine hood contact switch -F266- Hood contact switch 2 -F329- |
| 15 | |
| 16 | Engine Coolant Level (ECL) Warning Switch -F66- |
| 17 | |
| 18 | |
| 19 | Sensor Ground to 327 Sensor Ground Connection (in engine compartment wiring harness) |
| 20 | Left Front Turn Signal, Left Front Turn Signal Lamp -M5- |
| 21 | |
| 22 | |
| 23 | |
| 24 | Horn Relay -J413- |
| 25 | |
| 26 | |
| 27 | Outside Air Temperature Sensor -G17- |
| 28 | Windshield Washer Fluid Level Sensor -G33- |
| 29 | |
| 30 | LIN-Bus, to Windshield Wiper Motor -V- |
| 31 | |
| 32 | Left Daytime Running Lamp and Parking Light Control Module -J860- |
| 33 | |
| 34 | |
| 35 | |
| 36 | |
| 37 | |
| 38 | |
| 39 | Left High Beam Lamp, Left LED Headlamp Power Output Stage 1 -A31- |
| 40 | |
| 41 | |
| 42 | |
| 43 | |
| 44 | Right Cornering Lamp |
| 45 | Left Fog Lamp |
| 46 | Headlamp Washer Pump -V11- |
| -T73c-(C) | Designation |
|---|---|
| 1 | Terminal 30, from Fuse Panel C -SC- Safety fuse 3 -S133- |
| 2 | |
| 3 | |
| 4 | |
| 5 | Left Low Beam, to D152 Positive connection 1 (56b) (in engine compartment wiring harness) |
| 6 | Right Rear Fog Lamp -L47- |
| 7 | |
| 8 | Right brake lamp bulb -M10- |
| 9 | B466 Connection 2 (in main wiring harness) Left-Luggage Compartment Light -W18- Right Luggage Compartment Light -W35- |
| 10 | Left tail lamp bulb -M4- |
| 11 | |
| 12 | Terminal 30g, to Fuse panel C -SC- B559 Positive connection 1 (30g) (in main wiring harness) Glove Compartment Lamp Switch -E26- Front roof module -WX3- |
| 13 | |
| 14 | Access/start authorization control module -J518- |
| 15 | |
| 16 | Terminal 31, to 683 Ground Connection (on right front side member) |
| 17 | |
| 18 | |
| 19 | |
| 20 | |
| 21 | |
| 22 | |
| 23 | |
| 24 | Rear window defogger relay -J9- |
| 25 | |
| 26 | |
| 27 | |
| 28 | |
| 29 | |
| 30 | |
| 31 | Right Rear Turn Signal Lamp -M8- |
| 32 | |
| 33 | |
| 34 | Switch Module, instrument panel, center. -EX22-Driving profile selection button -E735- |
| 35 | |
| 36 | |
| 37 | |
| 38 | |
| 39 | |
| 40 | |
| 41 | |
| 42 | Switch Module, instrument panel, center. -EX22- Emergency Flasher Button -E229- |
| 43 | |
| 44 | |
| 45 | |
| 46 | |
| 47 | Switch Module, instrument panel, center. -EX22- Rear Spoiler Adjustment Indicator Lamp -K242- |
| 48 | Switch Module, instrument panel, center. -EX22- Emergency Flasher Indicator Lamp -K6- |
| 49 | |
| 50 | |
| 51 | Switch Module, instrument panel, center. -EX22- Stop/Start Mode Indicator Lamp -K259- |
| 52 | |
| 53 | |
| 54 | |
| 55 | |
| 56 | |
| 57 | |
| 58 | Terminal 54, from D73 Positive connection (54) (in engine compartment wiring harness) Brake Light Switch -F- Brake Pedal Switch -F63- |
| 59 | |
| 60 | Switch Module, instrument panel, center. -EX22- Stop/Start Mode Button -E693- |
| 61 | |
| 62 | Terminal 58s, to B731 Connection 1 (58s) in main wiring harness |
| 63 | Terminal 31, to 366 Ground Connection 1 (in main wiring harness) 367 Ground Connection 2 (in main wiring harness) 639 Ground Connection (on left A-pillar) |
| 64 | |
| 65 | |
| 66 | |
| 67 | Front roof module -WX3- |
| 68 | |
| 69 | |
| 70 | |
| 71 | |
| 72 | |
| 73 | Terminal 30, from Fuse Panel C -SC- Safety fuse 2 -S132- |
