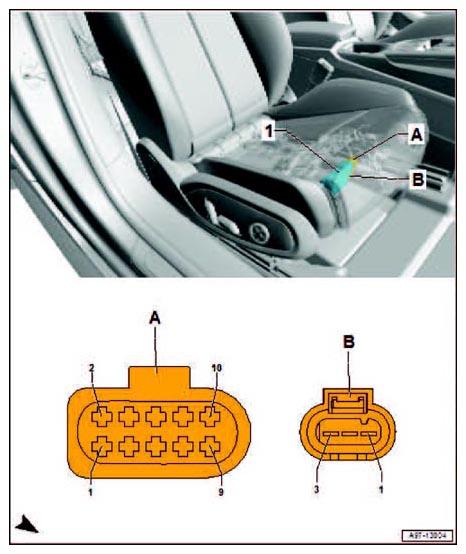

Seat Occupied Recognition Control Module Connector End View (J706, T10v, T3ad)
| 1 | Seat Occupied Recognition Control Module -J706- |
| A | 10-Pin Connector -T10v- |
| B | 3-Pin Connector - T3ad- |
| -T10v-(A) | Designation | -T3ad- (B) | Designation |
|---|---|---|---|
| 1 | 1 | Terminal 15, from Fuse panel C -SC- | |
| 2 | Shielding ground | 2 | Airbag Control Module -J234- |
| 3 | Terminal 31, to 35 Ground Connection (below front passenger's seat) | 3 | Terminal 31, to 95 Ground Connection 1 (in power seat wiring harness) |
| 4 | Terminal 31, to 136 Ground connection 2 (in heated seats wiring-harness) | ||
| 5 | |||
| 6 | Front Passenger's Seat Heating Element -Z8- | ||
| 7 | |||
| 8 | Front Passenger's Seat Heating Element -Z8- | ||
| 9 | |||
| 10 | Positive supply, from O14 Connection 3 (in heated seats wiring harness) |
