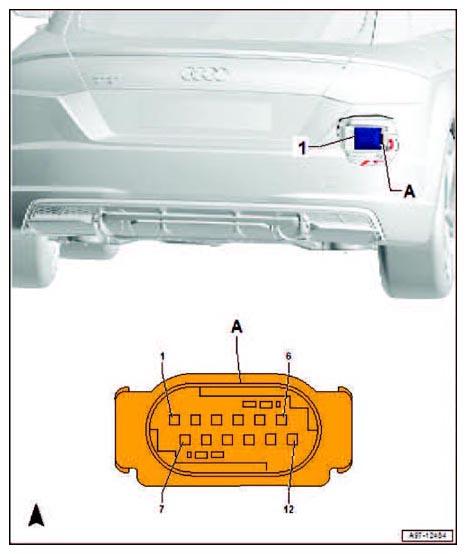

Lane Change Assistance Control Module Connector End View (J769, T12g)
| 1 | Lane Change Assistance Control Module -J769- |
| A | 12-Pin Connector -T12g-, black |
| -T12g- (A) | Designation |
|---|---|
| 1 | Lane Change Assistance Control Module 2 -J770- |
| 2 | Lane Change Assistance Control Module 2 -J770- |
| 3 | |
| 7 | |
| 8 | |
| 9 | Terminal 15, from X171 Connection 15 (in rear bumper wiring harness) B279 Positive connection 3 (15a) (in main wiring harness) Fuse-Panel C -SC- |
| 4 | |
| 5 | Extended System CAN-Bus Low, to B109 CAN-Bus Extended Low Connection 1 (in main wiring harness) Data Bus On Board Diagnostic Interface -J533- |
| 6 | |
| 10 | Terminal 31, to 470 Ground connection 1 (in rear bumper wiring harness) 729 Ground connection on left rear wheel housing |
| 11 | |
| 12 | Extended System CAN-Bus High, to B108 CAN-Bus Extended High Connection 1 (in main wiring harness) Data Bus On Board Diagnostic Interface -J533- |
