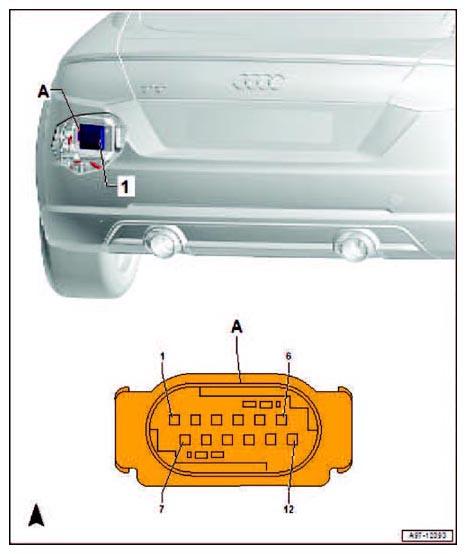

Lane Change Assistance Control Module 2 Connector End View (J770, T12h)
| 1 | Lane Change Assistance Control Module 2 -J770- |
| A | 12-Pin Connector -T12h-, black |
| -T12h- (A) | Designation |
|---|---|
| 1 | |
| 2 | Lane Change Assistance Warning Lamp (in front passenger's exterior mirror) -K234- |
| 3 | |
| 4 | Lane Change Assistance Warning Lamp (in driver's exterior mirror) -K233- |
| 5 | Lane Change Assistance Control Module -J769- |
| 6 | Lane Change Assistance Warning Lamp (in driver's exterior mirror) -K233- |
| 7 | |
| 8 | Lane Change Assistance Warning Lamp (in front passenger's exterior mirror) -K234- |
| 9 | Terminal 15, from X171 Connection 15 (in rear bumper wiring harness) B279 Positive connection 3 (15a) (in main wiring harness) Fuse-Panel C -SC- |
| 10 | Terminal 31, to 470 Ground connection 1 (in rear bumper wiring harness) 729 Ground connection on left rear wheel housing |
| 11 | |
| 12 | Lane Change Assistance Control Module -J769- |
