Exhaust Flap Control Module Connector End View (J883, T5h)

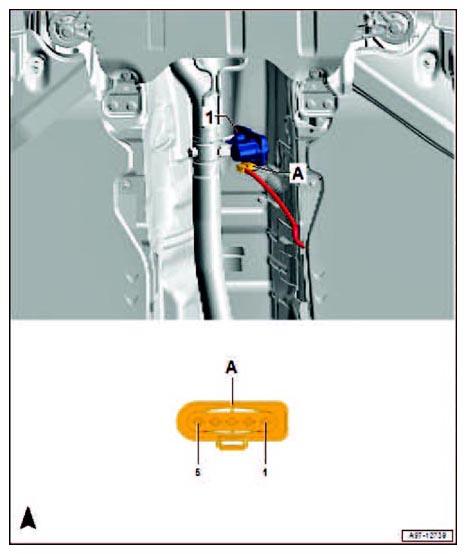

Fig 1: Exhaust Flap Control Module Connector End View (J883, T5h)

Courtesy of AUDI OF AMERICA, LLC

1	Exhaust Flap Control Module -J883-
A	5-Pin Connector -T5h-, black

-T5h- (A)	Designation
1	D109 Connection 7 (in engine compartment wiring harness) Engine Control Module (ECM) -J623-
2	Engine Control Module (ECM) -J623-
3	419 Ground Connection 11 (in engine compartment wiring harness) Engine Control Module (ECM) -J623-
4	Engine Control Module (ECM) -J623-
5	Engine Control Module (ECM) -J623-
