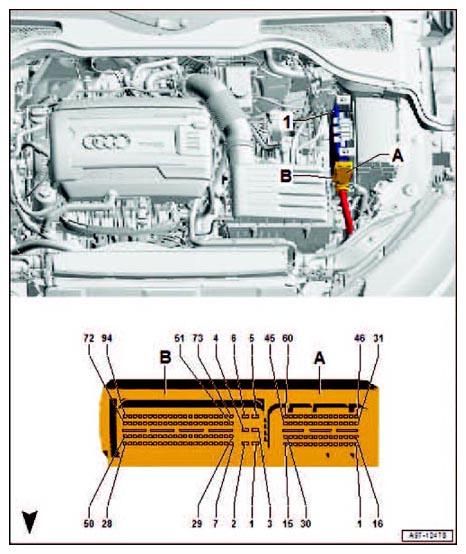

Engine Control Module (ECM) Connector End View (J623, J623, T60, T94)

Fig 1: Engine Control Module (ECM) Connector End View (J623, J623, T60, T94)

Courtesy of AUDI OF AMERICA, LLC

1	Engine Control Module (ECM) -J623-
A	60-Pin Connector -T60-, black
B	94-Pin Connector -T94-, black
