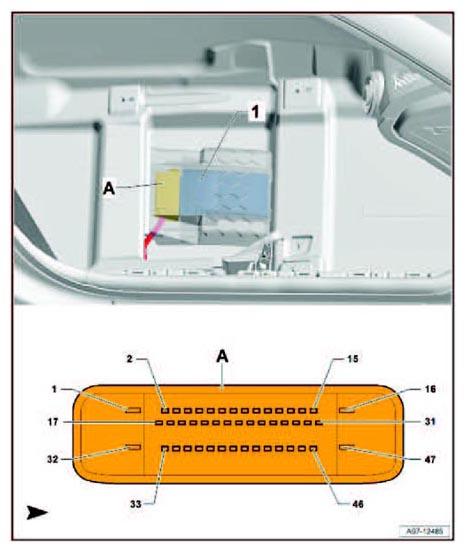

Electronic Damping Control Module Connector End View (J250, T47a)
| 1 | Electronic Damping Control Module -J250- |
| A | 47-Pin Connector -T47a-, black |
| -T47a- (A) | Designation |
|---|---|
| 1 | Terminal 15, from B277 Positive connection 1 (15a) in main wiring harness Vehicle Electrical System Control Module -J519- |
| 2 | Left Rear Level Control System Sensor -G76- |
| 3 | Right Front Level Control Sensor -G289- |
| 4 | |
| 5 | Right Rear Level Control System Sensor -G77- |
| 6 | Left Front Level Control System Sensor -G78- |
| 7 | |
| 8 | |
| 9 | |
| 10 | |
| 11 | |
| 12 | |
| 13 | |
| 14 | |
| 15 | |
| 16 | Terminal 31, to 683 Ground Connection (on right front side member) |
| 17 | Left Rear Level Control System Sensor -G76- |
| 18 | Right Front Level Control Sensor -G289- |
| 19 | |
| 20 | Right Rear Level Control System Sensor -G77- |
| 21 | Left Front Level Control System Sensor -G78- |
| 22 | |
| 23 | |
| 24 | |
| 25 | |
| 26 | |
| 27 | Right Front Dampening Adjustment Valve -N337- |
| 28 | Right Front Dampening Adjustment Valve -N337- |
| 29 | |
| 30 | Left Front Dampening Adjustment Valve -N336- |
| 31 | Left Front Dampening Adjustment Valve -N336- |
| 32 | |
| 33 | Left Rear Level Control System Sensor -G76- |
| 34 | Right Front Level Control Sensor -G289- |
| 35 | Right Rear Level Control System Sensor -G77- |
| 36 | Left Front Level Control System Sensor -G78- |
| 37 | CAN-Bus running gear/instrument cluster, Low B677 Suspension/instrument cluster CAN bus low connection 2 (in main wiring harness) Data Bus On Board Diagnostic Interface -J533- |
| 38 | CAN-Bus running gear/instrument cluster, High B673 Suspension/instrument cluster CAN bus high connection 2 (in main wiring harness) Data Bus On Board Diagnostic Interface -J533- |
| 39 | |
| 40 | |
| 41 | |
| 42 | Left Rear Dampening Adjustment Valve -N338- |
| 43 | Left Rear Dampening Adjustment Valve -N338- |
| 44 | |
| 45 | Right Rear Dampening Adjustment Valve -N339- |
| 46 | Right Rear Dampening Adjustment Valve -N339- |
| 47 | Terminal 30, from Fuse Panel C -SC- Safety fuse 3 -S133- |
