Airbag Control Module Connector End View (J234, T90a)
Airbag Control Module Connector End View (J234, T90a)

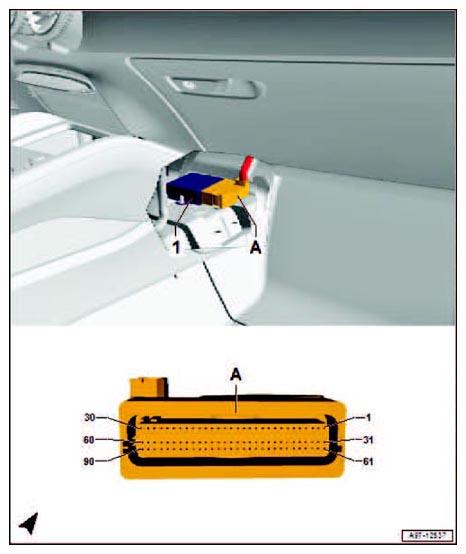

Fig 1: Airbag Control Module Connector End View (J234, T90a)
Courtesy of AUDI OF AMERICA, LLC
1
Airbag Control Module -J234-
A
90-Pin Connector -T90a-, yellow
