Access/start authorization control module Connector End View (J518, T40a)

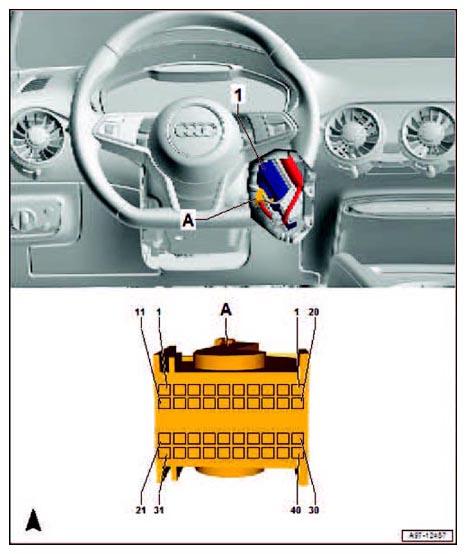

| 1 | Access/start authorization control module -J518- |
| A | 40-Pin Connector -T40a-, black |
| -T40a- (A) | Designation |
|---|---|
| 1 | |
| 2 | |
| 3 | |
| 4 | |
| 5 | Comfort System CAN-Bus Low, to B407 Comfort System CAN-Bus Low Connection 2 (in main wiring harness) Data Bus On Board Diagnostic Interface -J533- |
| 6 | Comfort System CAN-Bus High, to B398 Comfort System CAN-Bus High Connection 2 (in main wiring harness) Data Bus On Board Diagnostic Interface -J533- |
| 7 | Access/start authorization button -E408- |
| 8 | Front/Center Console Control Head -E461- Access/start authorization button -E408- |
| 9 | |
| 10 | |
| 11 | from Connector station on left front door -TTVL- Left Front Outside Door Handle Touch Sensor -G605- |
| 12 | from Connector station on right front door -TTVR- Driver's Outside Door Handle Touch Sensor -G415- |
| 13 | |
| 14 | |
| 15 | to Connector station, on left lower A-pillar -TALU- Engine Control Module (ECM) -J623- |
| 16 | |
| 17 | Terminal 31, to 372 Ground Connection 7 (in main wiring harness) 687 Ground Connection 1 (on center tunnel) |
| 18 | |
| 19 | Access/start authorization button -E408- |
| 20 | |
| 21 | Rear Right Access/Start Authorization Antenna -R166- |
| 22 | Rear Left Access/Start Authorization Antenna -R165- |
| 23 | Access/start system antenna in luggage compartment -R137- |
| 24 | Rear Left Access/Start Authorization Antenna -R165- |
| 25 | |
| 26 | Vehicle Electrical System Control Module -J519- |
| 27 | Vehicle Electrical System Control Module -J519- |
| 28 | |
| 29 | |
| 30 | Terminal 30, from Fuse Panel C -SC- Safety fuse 2 -S132- |
| 31 | Access/start authorization antenna -R249- |
| 32 | Rear Right Access/Start Authorization Antenna -R166- |
| 33 | Access/start system antenna in luggage compartment -R137- |
| 34 | Access/start authorization antenna -R249- |
| 35 | Vehicle Electrical System Control Module -J519- |
| 36 | Access/start system antenna 1 in vehicle interior -R138- |
| 37 | Access/start system antenna 2 in vehicle interior -R139- |
| 38 | Access/start system antenna 1 in vehicle interior -R138- |
| 39 | Access/start system antenna 2 in vehicle interior -R139- |
| 40 | Vehicle Electrical System Control Module -J519- |
| 1 | Access/start authorization control module -J518- |
| A | 40-Pin Connector -T40a-, black |
| -T40a-(A) | Designation |
|---|---|
| 1 | |
| 2 | |
| 3 | |
| 4 | |
| 5 | Comfort System CAN-Bus Low, to B407 Comfort System CAN-Bus Low Connection 2 (in main wring harness) Data Bus On Board Diagnostic Interface -J533- |
| 6 | Comfort System CAN-Bus High, to B398 Comfort System CAN-Bus High Connection 2 (in maim wiring harness) Data Bus On Board Diagnostic Interface -J533- |
| 7 | Access/start authorization button -E408- |
| 8 | Front/Center Console Control Head -E461- Access/start authorization button -E408- |
| 9 | |
| 10 | |
| 11 | from Connector station on left front door -TTVL- Left Front Outside Door Handle Touch Sensor -G605- |
| 12 | from Connector station on right front door -TTVR- Driver's Outside Door Handle Touch Sensor -G415- |
| 13 | |
| 14 | |
| 15 | to Connector station, on left lower A-pillar -TALU- Engine Control Module (ECM) -J623- |
| 16 | |
| 17 | Terminal 31, to 372 Ground Connection 7 (in main wiring harness) 687 Ground Connection 1 (on center tunnel) |
| 18 | |
| 19 | Access/start authorization button -E408- |
| 20 | |
| 21 | Rear Right Access/Start Authorization Antenna -R166- |
| 22 | Rear Left Access/Start Authorization Antenna -R165- |
| 23 | Access/start system antenna in luggage compartment -R137- |
| 24 | Rear Left Access/Start Authorization Antenna -R165- |
| 25 | |
| 26 | Vehicle Electrical System Control Module -J519- |
| 27 | Vehicle Electrical System Control Module -J519- |
| 28 | |
| 29 | |
| 30 | Terminal 30, from Fuse Panel C -SC- Safety fuse 2 -S132- |
| 31 | Access/start authorization antenna -R249- |
| 32 | Rear Right Access/Start Authorization Antenna -R166- |
| 33 | Access/start system antenna in luggage compartment -R137- |
| 34 | Access/start authorization antenna -R249- |
| 35 | Vehicle Electrical System Control Module -J519- |
| 36 | Access/start system antenna 1 in vehicle interior -R138- |
| 37 | Access/start system antenna 2 in vehicle interior -R139- |
| 38 | Access/start system antenna 1 in vehicle interior -R138- |
| 39 | Access/start system antenna 2 in vehicle interior -R139- |
| 40 | Vehicle Electrical System Control Module -J519- |
