Cooling System, Checking For Coolant Leaks: Notes
WARNING: This page is about a different car, the 2015 Audi A7 Quattro and 2014 Audi A7 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
Special Tools And Workshop Equipment Required
- Cooling System Tester VAG 1274B
- Cooling System Tester - Adapter VAG 1274/8
- Cooling System Tester - Adapter VAG 1274/9
Procedure
- Engine at operating temperature.
WARNING:
Risk of scalding due to hot steam and hot coolant.
- The coolant system is under pressure when the engine is warm.
- Reduce pressure by covering coolant reservoir cap with a cloth and carefully opening.
-- Remove the cap -arrow- from the coolant reservoir.

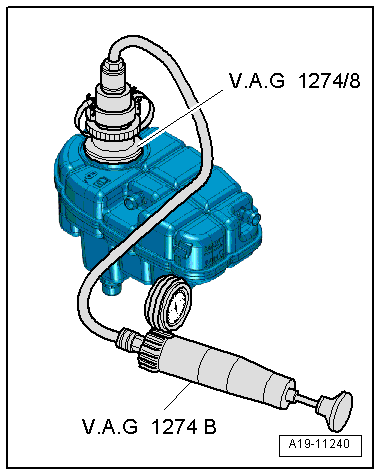

-- Position the Cooling System Tester VAG 1274B with the Cooling System Tester - Adapter VAG 1274/8 on the coolant reservoir.
-- Generate approximately 1 bar pressure using the cooling system tester hand pump.
-- If pressure falls, search for leaks and correct problem.
