Rear Lid Control Module 2 Connector End View (J756, T10)

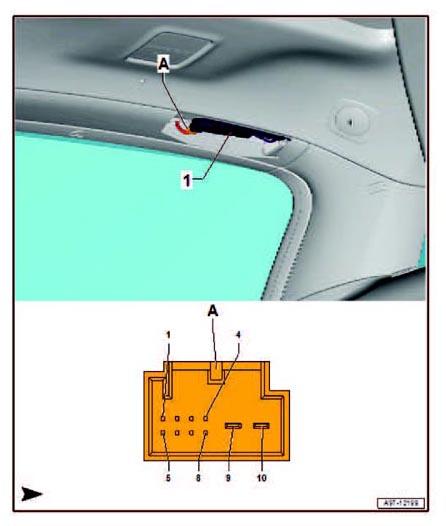

Fig 1: Rear Lid Control Module 2 Connector End View (J756, T10)

Courtesy of AUDI OF AMERICA, LLC

1	Rear Lid Control Module 2 -J756-
	with Motor in rear lid control module 2 -V376-
A	10-Pin Connector -T10-

-T10-(A)	Designation
1
2	Rear Lid Control Module -J605-
3	Trunk Lid Alarm Switch -F123-
4
5
6	Rear Lid Control Module -J605-
7
8
9	Terminal 31
10	Terminal 30
