Memory Seat/Steering Column Adjustment Control Module/Passenger Memory Seat Control Module Connector End View (J136, J521, T32h, T32i, T12s, T12t)

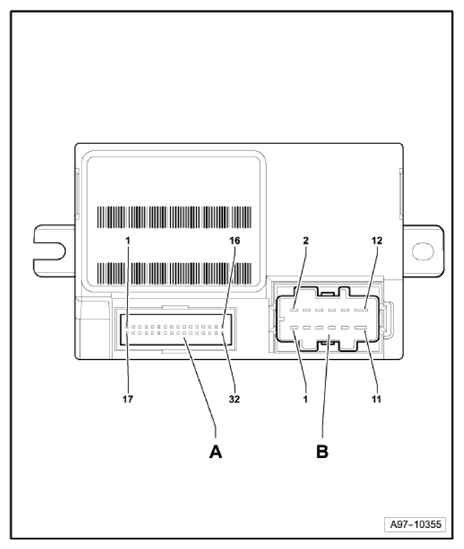

Fig 1: Memory Seat/Steering Column Adjustment Control Module/Passenger Memory Seat Control Module Connector End View (J136, J521, T32h, T32i, T12s, T12t)
G10359816Courtesy of AUDI OF AMERICA, LLC
A 32-Pin Connector -T32h-/32-Pin Connector -T32i-, blue
B 12-Pin Connector -T12s-/12-Pin Connector -T12t-, black
