Door Closing Assist Control Module Connector End View (J657, T5c)

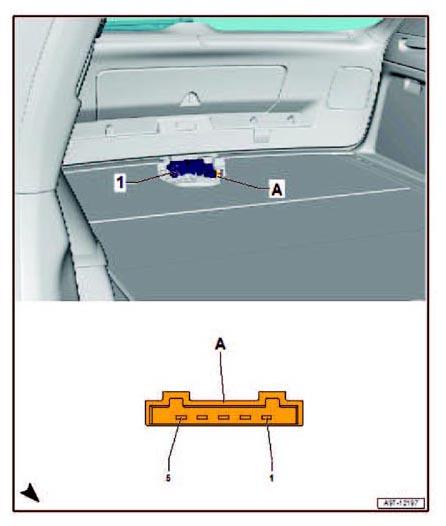

Fig 1: Door Closing Assist Control Module Connector End View (J657, T5c)

Courtesy of AUDI OF AMERICA, LLC

1	Door Closing Assist Control Module -J657-
	with Trunk Lid Release Motor -V102-, Rear Lid Opening Assist Unlock Stop Switch -F332-, Rear Lid Closing Assist Lock Stop Switch -F333-
A	5-Pin Connector -T5c-, black

-T5c- (A)	Designation
1	Comfort System Central Control Module -J393-
2	Comfort System Central Control Module -J393-
3	Comfort System Central Control Module -J393-
4	Terminal 31
5	Comfort System Central Control Module -J393-
