Rear Fresh Air Blower Control Module -J391-

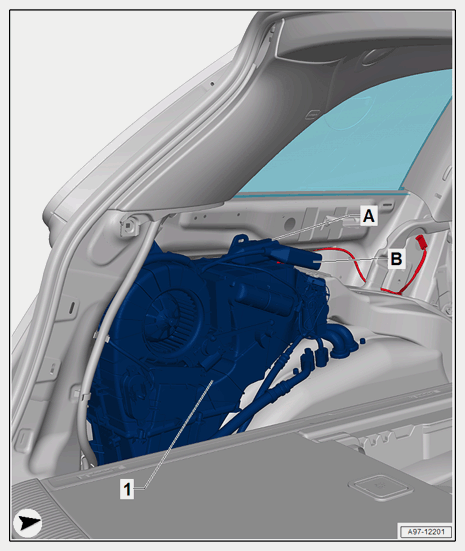

Component Location:

Behind The Left Luggage Compartment Trim.

1. 1  - Rear Fresh Air Blower Control Module -J391-
   • With Rear fresh air blower -V80-, Left Rear Vent Temperature Sensor -G405-, Right Rear Vent Temperature Sensor -G406-, Left Rear Temperature Flap Motor -V313-, Left Rear Temperature Flap Position Sensor -G391-, Left Rear Air Flap Motor -V239-, Left Rear Air Flap Position Sensor -G389-, Right Rear Air Flap Motor -V240-, Right Rear Air Flap Position Sensor -G390-, Right Rear Temperature Flap Motor -V314-, Right Rear Temperature Flap Position Sensor -G392-
2. A  - 12-Pin Connector -T12k-
3. B  - 17-Pin Connector -T17h-

Courtesy of AUDI OF AMERICA, LLC
