Auxiliary Heater RF Receiver -R64-

Component Location

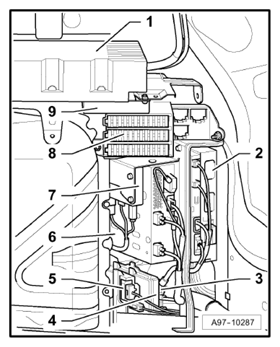

Behind Luggage Compartment Side Trim -5-.

G12779701Courtesy of AUDI OF AMERICA, LLC

Pin Connectors

  1. 6-Pin Connector -T6U-, Blue
  2. Antenna Connector

    Back To Overview  → COMP. LOC. CONTROL MODULES  .
