Engine Speed Sensor -G28-, REMOVING AND INSTALLING: Removing

-- Remove the rear noise insulation, refer to REAR NOISE INSULATION, REMOVING AND INSTALLING .

Vehicles with Multitronic 0AW

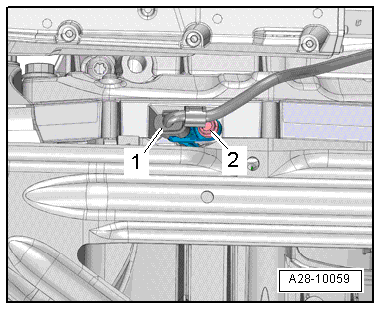

Fig 1: Identifying Engine Speed Sensor And Connector

Courtesy of AUDI OF AMERICA, LLC

-- Disconnect the connector -1-.

-- Remove the bolt -2- and the Engine Speed Sensor -G28-.

Vehicles with S tronic Transmission 0B5:

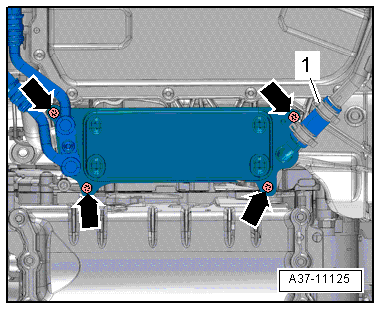

Fig 2: Identifying Bolts And ATF Cooler

Courtesy of AUDI OF AMERICA, LLC

-- Remove bolts -arrows- and move the ATF cooler slightly to the side.

-- Disconnect the connector -2-.

Fig 3: Location Engine Speed (RPM) Sensor -G28-

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolt -1- and the Engine Speed Sensor -G28-.
