Left/Right Rear Treble Speaker -R14- / -R16-, Removing And Installing: Removing
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Audi S6, 2015 Audi A6 Quattro, 2015 Audi A6, 2014 Audi S6, and 2014 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
-- Turn off the ignition and all electrical consumers and remove the ignition key.
-- Remove the rear door trim panel. Refer to REAR DOOR TRIM PANEL .
-- Release and disconnect the connector from the Left Rear Treble Speaker -R14- -1-.

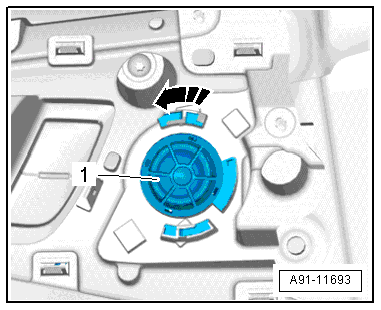

-- Turn the Left Rear Treble Speaker -R14- -1- in the direction of the -arrow- until it can be removed from the door trim panel.
