External Audio Source Connection 2 -R321-, REMOVING AND INSTALLING: Removing

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Audi S6, 2015 Audi A6 Quattro, 2015 Audi A6, 2014 Audi S6, and 2014 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

The External Audio Source Connection 2 -R321- -2- is installed from behind in the rear center armrest storage compartment -1-.

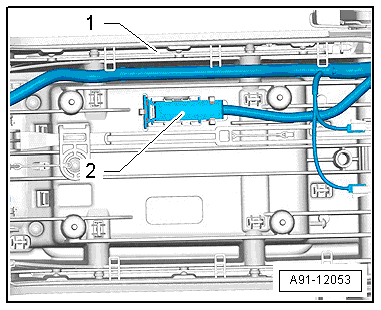

Fig 1: Identifying Rear Center Armrest Storage Compartment -1-

Courtesy of AUDI OF AMERICA, LLC

-- Remove the rear center armrest. Refer to STORAGE COMPARTMENT IN CENTER ARMREST .

-- Remove the External Audio Source Connection 2 -R321- -2- from the center console -1-.

Fig 2: Identifying Rear Center Armrest Storage Compartment -1-

Courtesy of AUDI OF AMERICA, LLC
