Windshield Washer System Overview

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Audi S6, 2015 Audi A6 Quattro, 2015 Audi A6, 2014 Audi S6, and 2014 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Identifying Windshield Washer System Overview

Courtesy of AUDI OF AMERICA, LLC

Bolt
- Tightening sequence Fig 2
Windshield Wiper Motor -V-
- With Wiper Motor Control Module -J400-
- Removing and installing, refer to Windshield Wiper Motor -V- WITH Wiper Motor Control Module -J400-
- Replacing, refer to Windshield Wiper Motor -V- AND Wiper Motor Control Module -J400-, REPLACED
Bolt
- Tightening sequence Fig 2
Nut
- 22 Nm
Cap
Passenger Side Windshield Wiper Arm
- There are different lengths
- Removing and installing, refer to WINDSHIELD WIPER ARMS
- Adjusting, refer to WINDSHIELD WIPER ARMS, ADJUSTING
Passenger Side Windshield Wiper Blade
- There are different lengths
- Replacing, refer to WINDSHIELD WIPER BLADES, REPLACING
Driver Side Windshield Wiper Blade
- There are different lengths
- Replacing, refer to WINDSHIELD WIPER BLADES, REPLACING
Driver Side Windshield Wiper Arm
- There are different lengths
- Removing and installing, refer to WINDSHIELD WIPER ARMS
- Adjusting, refer to WINDSHIELD WIPER ARMS, ADJUSTING
Cap
Nut
- 22 Nm
Bolt
- Tightening sequence Fig 2

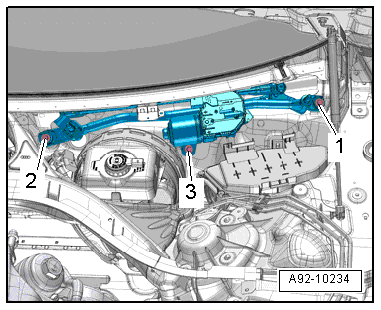

Fig 2: Tightening Specifications And Sequence For Windshield Wiper Motor

Courtesy of AUDI OF AMERICA, LLC

-- Tighten the bolts in stages in the sequence shown:

Stage	Bolts	Tightening Specification
1.	-1 though 3-	Install by hand as far as the stop.
2.	-1 though 3-	8 Nm
