Front Display Front And Rear Cover, Removing And Installing: Removing
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2018 Audi S7, 2018 Audi RS 7, 2018 Audi A7 Quattro, 2017 Audi S7, and 2017 Audi RS 7. However, it is still accessible from the selected car via links, so may be relevant.
-- Bring the display into service position. Refer to 8-INCH FRONT DISPLAY SERVICE POSITION .
-- Remove the display with the kinematics:
- 6.5 inch. Refer to 6.5 INCH DISPLAY WITH KINEMATICS, REMOVING AND INSTALLING .
- 8 inch. Refer to 8 INCH DISPLAY WITH KINEMATICS, REMOVING AND INSTALLING .
First the Front Information Display Control Head -J685- is disconnected from the kinematics.
-- Follow the guidelines for ESD (electro static discharge). Refer to FRONT DISPLAY FRONT AND REAR COVER, REMOVING AND INSTALLING .

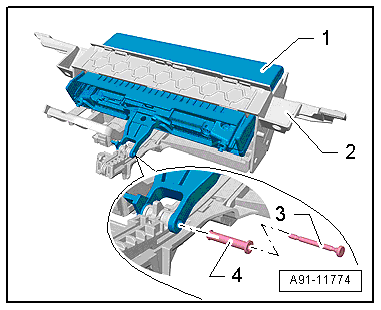

-- Remove the mounting pin -3- and the bearing sleeve -4- from the display support -1-.
-- Remove the display support -1- from the kinematics -2-.

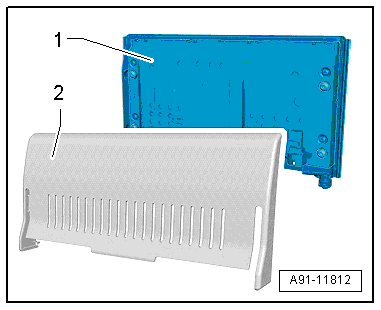

-- Unclip the rear cover -2- from the display support with display -1-.

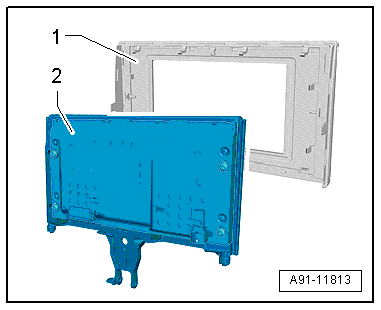

-- Unclip the front cover -1- from the display support with display -2-.
